# Notes

DATABASE MANAGEMENT SYSTEM (DBMS)

# WHY USE A DBMS?

Storing data in traditional text or binary files has its limits

  • well suited for applications that store only a small amount of data
  • not practical for applications that must store a large amount of data
  • simple operations become cumbersome and inefficient as data increases

A database management system (DBMS) is software that is specifically designed to work with large amounts of data in an efficient & organized manner

  • Data is stored using the DBMS
  • Applications written in Java or other languages communicate with the DBMS rather than manipulate the data directly
  • DBMS carries out instructions and sends the results back to the application

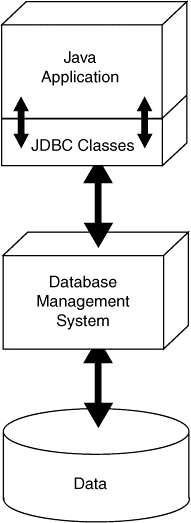

# JDBC PROVIDES CONNECTIVITY TO THE DBMS

  • JDBC stands for Java database connectivity
  • It is the technology that makes communication possible between the Java application and DBMS
  • The Java API contains numerous JDBC classes that allow your Java applications to interact with a DBMS

# USE SQL TO SEND COMMANDS TO DBMS

  • SQL stands for structured query language
  • A standard language for working with database management systems
  • Not used as a general programming language
  • Consists of several key words, used to construct statements known as queries
  • Statements or queries are passed from the application to the DBMS using API method calls strings
  • Serve as instructions for the DBMS to carry out operations on its data

# JDBC Needs a DBMS

To use JDBC to work with a database you will need a DBMS

# JDBC CLASSES FOR PROCESSING

  • Java comes with a standard set of JDBC classes java.sql and javax.sql

Using JDBC in a Java app requires

  1. Get a connection to the database
  2. Pass a string containing an SQL statement to the DBMS
  3. If the SQL statement has results to send back, they will be sent back as a result set
  4. When finished working with the database, close the connection

# Tables, Rows, and Columns

  • A database management system stores data in a database
  • A database is organized into one or more tables
  • Each table holds a collection of related data, organized into rows and columns
  • A row is a complete set of information (tuple) about a single item, divided into columns
  • Each column is an individual piece of information about the item

# Column Data Types

Columns in a database are assigned an SQL data type

SQL data types are generally compatible with Java data types

The Coffee Table Column Data Types

  • Description column data type is CHAR(25)

    • String with a fixed length of 25 characters
    • Compatible with the String type in Java
  • ProdNum column data type is CHAR(10)

    • String with a fixed length of 10 characters
    • Compatible with the String type in Java
  • Price column data type is DOUBLE

    • Double-precision floating-point number
    • Compatible with the double data type in Java

# Primary Keys

  • A primary key is a column that holds a unique value for each row in a database table
    In the Coffee table, ProdNum is the primary key

    • Each type of coffee has a unique product number
    • Used to identify any coffee stored in the table
  • A primary key can be the combination of several columns in a table

# the SQL SELECT Statement

The SELECT statement is used to retrieve the rows in a table

  • Columns is one or more column names

    • Multiple column names are separated with a comma
    • The * character can be used to retrieve all columns in the table
  • Table is a table name

Examples
SELECT Description FROM Coffee
SELECT Description, Price FROM Coffee
SELECT * FROM Coffee

# Specifying Search Criteria with the WHERE clause

The WHERE clause can be used with the SELECT statement to specify a search criteria

SELECT Columns FROM Table WHERE Criteria
  • Criteria is a conditional expression
Example
SELECT * FROM Coffee WHERE Price > 12.00

  • Only the rows that meet the search criteria are returned in the result set
  • A result set is an object that contains the results of an SQL statement

# SQL Relational Operators

Standard SQL supports the following relational operators:

OperatorMeaning
>Greater than
<Less than
>=Greater than or equal to
<=Less than or equal to
=Equal to
<>Not equal to

Notice a few SQL relational operators are different than in Java

  • SQL equal to operator is =
  • SQL not equal to operator is <>

# String Comparisons in SQL

SELECT * FROM Coffee WHERE Description = 'French Roast Dark'
  • In SQL, strings are enclosed in single quotes

Warning!

SELECT * FROM Coffee WHERE Description = 'french roast dark'
  • String comparisons in SQL are case sensitive
SELECT * FROM Coffee
   WHERE UPPER(Description) = 'FRENCH ROAST DARK'
  • The UPPER() or LOWER() functions convert the string to uppercase or lowercase and can help prevent case sensitive errors when comparing strings
SELECT * FROM Coffee WHERE Description ='Joe''s Special Blend'
  • If a single quote ' is part of a string, use two single quotes ''

# Using the LIKE Operator

In SQL, the LIKE operator can be used to search for a substring

SELECT * FROM Coffee WHERE Description LIKE '%Decaf%'
  • The % symbol is used as a wildcard for multiple characters
SELECT * FROM Coffee WHERE ProdNum LIKE '2_-00_'
  • The underscore _ is a used as a wildcard for a single character
SELECT * FROM Coffee
   WHERE Description NOT LIKE '%Decaf%'
  • The NOT operator is used to disqualify the search criteria

# Using AND and OR

The AND and OR operators can be used to specify multiple search criteria in a WHERE clause

SELECT * FROM Coffee
   WHERE Price > 10.00 AND Price < 14.00
  • The AND operator requires that both search criteria be true
SELECT * FROM Coffee
   WHERE Description LIKE '%Dark%' OR ProdNum LIKE '16%'
  • The OR operator requires that either search criteria be true

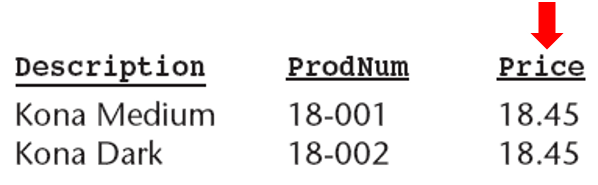

# Sorting results of a Select query

Use the ORDER BY clause to sort results according to a column

  • Sorted in ascending order ASC by default
  • Use the DESC operator to sort results in descending order
Examples
SELECT * FROM Coffee ORDER BY Price
SELECT * FROM Coffee WHERE Price > 9.95 ORDER BY Price DESC

# Mathematical Functions

# The AVG function

calculates the average value in a particular column

SELECT AVG(Price) FROM Coffee

# The SUM function

calculates the sum of a column's values

SELECT SUM(Price) FROM Coffee

# The MIN and MAX functions

calculate the minimum and maximum values found in a column

SELECT MIN(Price) FROM Coffee
SELECT MAX(Price) FROM Coffee

# The COUNT function

can be used to determine the number of rows in a table

SELECT COUNT(*) FROM Coffee

# Inserting rows

In SQL, the INSERT statement inserts a row into a table

INSERT INTO TableName VALUES (Value1, Value2, ...)
  • TableName is the name of the database table
  • Value1, Value2, ... is a list of column values
Example
INSERT INTO Coffee
VALUES ('Honduran Dark', '22-001', 8.65)
  • Strings are enclosed in single quotes
  • Values appear in the same order as the columns in the table

If column order is uncertain, the following general format can be used

INSERT INTO TableName
   (ColumnName1, ColumnName2, ...)
VALUES
   (Value1, Value2, ...)

where....

  • ColumnName1, ColumnName2, ... is a list of column names
  • Value1, Value2, ... is a list of corresponding column values
Example
INSERT INTO Coffee
   (ProdNum, Price, Description)
VALUES
   ('22-001', 8.65, 'Honduran Dark')
  • Keep in mind that primary key values must be unique
  • For example, a duplicate ProdNum is not allowed in the Coffee table

# Updating an Existing Row

In SQL, the UPDATE statement changes the contents of an existing row in a table

UPDATE Table
   SET Column = Value
   WHERE Criteria
  • Table is a table name
  • Column is a column name
  • Value is the value to store in the column
  • Criteria is a conditional expression
Example
UPDATE Coffee
   SET Price = 9.95
   WHERE Description = 'Galapagos Organic Medium'

It is possible to update more than one row

Example
UPDATE Coffee
   SET Price = 12.95
   WHERE ProdNum LIKE '21%'
  • Updates the price of all rows where the product number begins with 21

Warning!

UPDATE Coffee
   SET Price = 4.95
  • Because this statement does not have a WHERE clause, it will change the price for every row

# Deleting Rows with the DELETE Statement

In SQL, the DELETE statement deletes one or more rows in a table

DELETE FROM Table WHERE Criteria
  • Table is the table name
  • Criteria is a conditional expression
Example
DELETE FROM Coffee WHERE ProdNum = '20-001'
  • Deletes a single row in the Coffee table where the product number is 20-001
DELETE FROM Coffee WHERE Description = 'Sumatra%'
  • Deletes all rows in the Coffee table where the description begins with Sumatra

Warning!

DELETE FROM Coffee
  • Because this statement does not have a WHERE clause, it will delete every row in the Coffee table

# Creating Tables with the CREATE TABLE Statement

In SQL, the CREATE TABLE statement adds a new table to the database

CREATE TABLE TableName
   (ColumnName1 DataType1,
    ColumnName2 DataType2, ...)
  • TableName is the name of the table

  • ColumnName1 is the name of the first column

  • DataType1 is the SQL data type for the first column

  • ColumnName2 is the name of the second column

  • DataType2 is the SQL data type for the second column

  • The PRIMARY KEY qualifier is used to specify a column as the primary key

  • The NOT NULL qualifier is used to specify that the column must contain a value for every row

    • Qualifiers should be listed after the column's data type
Example
CREATE TABLE Customer
   ( Name CHAR(25), Address CHAR(25),
     City CHAR(12), State CHAR(2), Zip CHAR(5) )
  • Creates a new table named Customer with the columns Name , Address , City , State , and Zip
Example
CREATE TABLE Customer
   ( CustomerNumber CHAR(10) NOT NULL PRIMARY KEY
     Name CHAR(25), Address CHAR(25),
     City CHAR(12), State CHAR(2), Zip CHAR(5) )
  • Creates a new table named Customer with the columns CustomerNumber , which is the primary key, Name , Address , City , State , and Zip

Example: CreateCustomerTable.java

# Removing a Table with the DROP TABLE Statement

In SQL, the DROP TABLE statement deletes an existing table from the database

DROP TABLE TableName
  • TableName is the name of the table you wish to delete
Example
DROP TABLE Customer
  • Deletes the Customer table from the CoffeeDB database
  • Useful if you make a mistake creating a table
  • Simply delete the table and recreate

# Relational Data

  • A foreign key is a column in one table that references a primary key in another table
  • Creates a relationship between the tables

Example:
UnpaidOrder table:

CustomerNumberCHAR(10)Foreign Key
ProdNumCHAR(10)Foreign Key
OrderDateCHAR(10)
QuantityDOUBLE
CostDOUBLE
  • The CustomerNumber column references the Customer table
  • The ProdNum column references the Coffee table
  • This creates a relationship between the tables of the CoffeeDB database

The following SQL statement creates the UnpaidOrder table in the CoffeeDB database:

CREATE TABLE UnpaidOrder
(CustomerNumber CHAR(10) NOT NULL
     REFERENCES Customer(CustomerNumber),
  ProdNum CHAR(10) NOT NULL
     REFERENCES Coffee(ProdNum),
  OrderDate CHAR(10),
  Quantity DOUBLE,
  Cost DOUBLE )
  • The REFERENCES qualifier ensures referential integrity between tables
    • The CustomerNumber in the UnpaidOrder table must contain a valid CustomerNumber from the Customer table
    • The ProdNum in the UnpaidOrder table must contain a valid ProdNum from the Coffee table

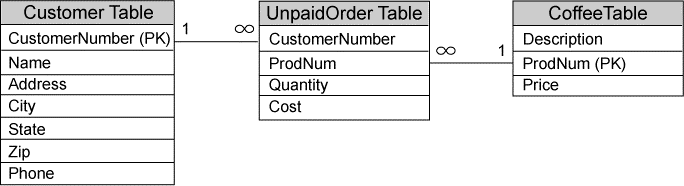

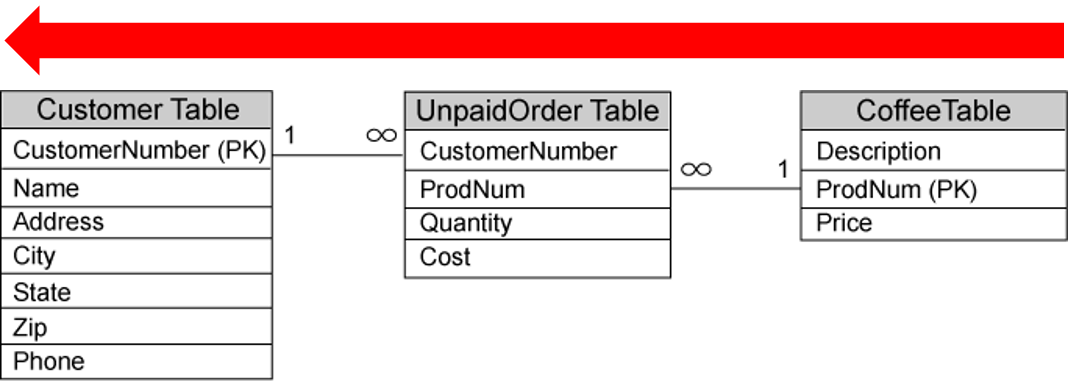

# Entity Relationship Diagrams

An entity relationship diagram shows the relationships between tables

  • Primary keys are denoted with (PK)
  • Lines drawn between tables show how they are related
    • The ends of each line show either a 1 or an infinity symbol (∞)
      • The infinity symbol means many and number 1 means one.
    • A one to many relationship means that for each row in table A there can be many rows in table B that reference it.
    • A many to one relationship means that many rows in table A can reference a single row in table B.

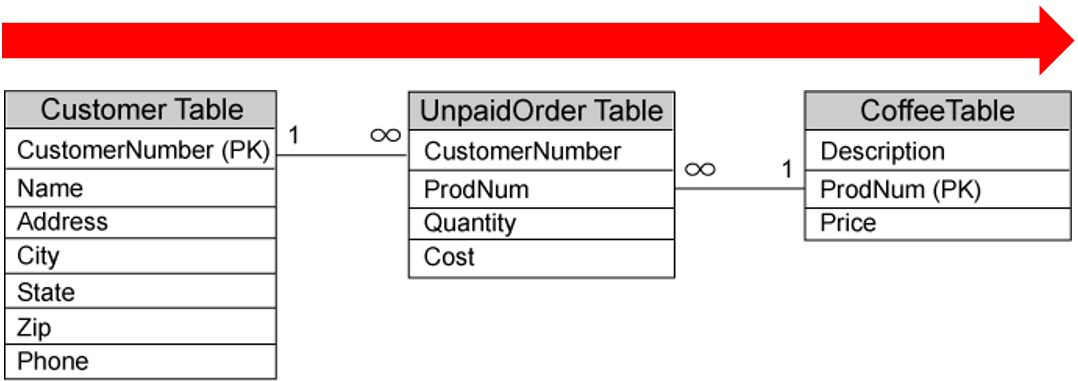

# CoffeeDB Relationships Left to Right

  • One to many relationship between Customer and UnpaidOrder
    • One row in the Customer table may be referenced by many rows in the UnpaidOrder table
  • Many to one relationship between the UnpaidOrder and Coffee tables
    • Many rows in the UnpaidOrder table may reference a single row in the Coffee table.

# CoffeeDB Relationships Right to Left

  • One to many relationship between Coffee and UnpaidOrder
    • One row in the Coffee table may be referenced by many rows in the UnpaidOrder table
  • Many to one relationship between UnpaidOrder and Customer
    Many rows in the UnpaidOrder table may reference a single row in the Customer table.

# Joining Data from Multiple Tables

In SQL, you must use qualified column names in a SELECT statement if the tables have columns with the same name

A qualified column name takes the following form: TableName.ColumnName

SELECT
   Customer.CustomerNumber, Customer.Name,
   UnpaidOrder.OrderDate, UnpaidOrder.Cost,
   Coffee.Description
FROM
   Customer, UnpaidOrder, Coffee
WHERE
   UnpaidOrder.CustomerNumber = Customer.CustomerNumber
   AND
   UnpaidOrder.ProdNum = Coffee.ProdNum
  • The search criteria tell the DBMS how to link the rows in the tables

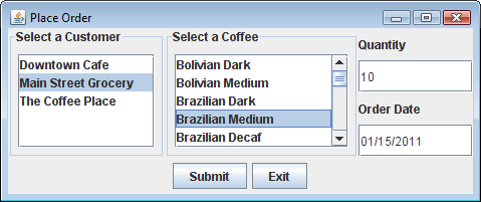

The Place Order application uses a relational database CoffeeDB
Requires the Coffee , Customer , and UnpaidOrder tables

# Transactions

  • An operation that requires multiple database updates is known as a transaction.
    需要多次数据库更新的操作称为事务。
  • For a transaction to be complete
    • All of the steps involved in the transaction must be performed.
  • If any single step within a transaction fails
    • None of the steps in the transaction should be performed.
  • When you write transaction-processing code, there are two concepts you must understand:
    • Commit
    • Rollback
  • The term commit refers to making a permanent change to a database
  • The term rollback refers to undoing changes to a database

# SQL | DDL, DQL, DML, DCL and TCL Commands

Structured Query Language(SQL) as we all know is the database language by the use of which we can perform certain operations on the existing database and also we can use this language to create a database. SQL uses certain commands like Create, Drop, Insert etc. to carry out the required tasks.

These SQL commands are mainly categorized into four categories as:

  1. DDL – Data Definition Language
  2. DQl – Data Query Language
  3. DML – Data Manipulation Language
  4. DCL – Data Control Language

Though many resources claim there to be another category of SQL clauses TCL – Transaction Control Language. So we will see in detail about TCL as well.

# DDL(Data Definition Language)

DDL or Data Definition Language actually consists of the SQL commands that can be used to define the database schema. It simply deals with descriptions of the database schema and is used to create and modify the structure of database objects in the database.

Examples of DDL commands:

CREATE
is used to create the database or its objects (like table, index, function, views, store procedure and triggers).
DROP
is used to delete objects from the database.
ALTER
is used to alter the structure of the database.
TRUNCATE
is used to remove all records from a table, including all spaces allocated for the records are removed.
COMMENT
is used to add comments to the data dictionary.
RENAME
is used to rename an object existing in the database.

# DQL (Data Query Language)

DML statements are used for performing queries on the data within schema objects. The purpose of DQL Command is to get some schema relation based on the query passed to it.

Example of DQL:

SELECT
is used to retrieve data from the a database.

# DML(Data Manipulation Language)

The SQL commands that deals with the manipulation of data present in the database belong to DML or Data Manipulation Language and this includes most of the SQL statements.

Examples of DML:

INSERT
is used to insert data into a table.
UPDATE
is used to update existing data within a table.
DELETE
is used to delete records from a database table.

# DCL(Data Control Language)

DCL includes commands such as GRANT and REVOKE which mainly deals with the rights, permissions and other controls of the database system.

Examples of DCL commands:

GRANT
gives user's access privileges to database.
REVOKE
withdraw user's access privileges given by using the GRANT command.

# TCL(transaction Control Language)

TCL commands deals with the transaction within the database.

Examples of TCL commands:
COMMIT
~ commits a Transaction.

ROLLBACK
rollbacks a transaction in case of any error occurs.
SAVEPOINT
sets a savepoint within a transaction.
SET TRANSACTION
specify characteristics for the transaction.

# Review

DB table creations & queries

  1. Fill in the create table statement below to create a table called tickets given the field listings below.

    Field nameField TypeField SizePrimary Key?Nulll?
    idAuto_incrementYN
    ticketNumIntegerNY
    ticketDecscvarchar100

    Note field name and datatype is required when listing fields in the create statement below.

    String sql = "CREATE TABLE tickets " +
                         "(id INTEGER not NULL AUTO_INCREMENT, " +
                         " ticketNum INTEGER, " +
                         " ticketDesc VARCHAR(100), " +
                         " PRIMARY KEY ( id ))";
  2. What additional fields / datatypes would you add as a suggestion when building your table?

    Any additional tables you would think would be necessary for an app that is for a trouble ticket system?

    Field nameValuesField TypeField SizePrimary Key?Nulll?
    idAuto_incrementYN
    ticketNumIntegerNY
    ticketDecscvarchar100
    UidN
    Start_date
    End_date
    priorityH,M,L
  3. Fill in the insert statement below to insert a record into your table that contains this data

    Field nameData
    Id
    ticketNum1001
    ticketDecscPC Virus
    String sql = "INSERT INTO tickets(ticketNum, ticketDesc) " +
                              " VALUES (1001, 'PC VIRUS')";
  4. Fill in the insert statement again to add a record to the table this time with variables called ticket_num and ticket_desc ?

    String sql = "INSERT INTO tickets(ticketNum, ticketDesc) " +
                              " VALUES ('"+ticket_num+"','"+ticket_desc+"')";
  5. When would you perform a commit as a command?

    • The COMMIT command is the transactional command used to save changes invoked by a transaction to the database.
      COMMIT 命令是用于将事务调用的 “更改” 保存到数据库的事务性命令。
    • The COMMIT command saves all transactions to the database since the last COMMIT or ROLLBACK command.
      COMMIT 命令将自上一个 COMMIT 或 ROLLBACK 命令以来的所有事务保存到数据库中。
    • The syntax for COMMIT command is as follows:
      语法如下
      COMMIT;
